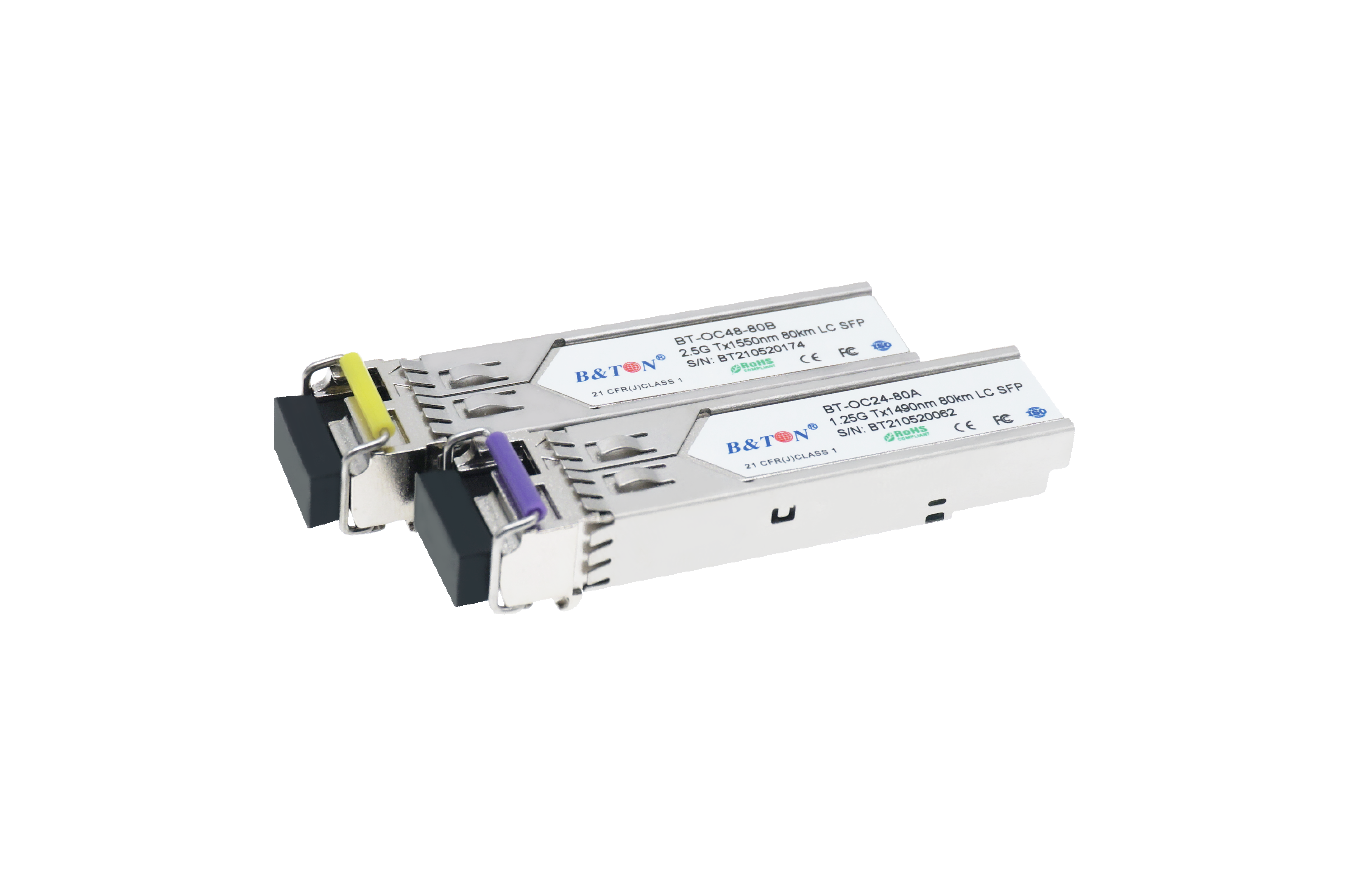

1.25G Tx1490/Rx1550nm 80km SFP Transceiver

Features

* Dual data-rate of 1.25Gbps/1.063Gbps operation

* 1490nm DFB laser and APD photodetector for 80km transmission

* Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

* Digital Diagnostic Monitoring:

  Internal Calibration or External Calibration

* Compatible with RoHS

* +3.3V single power supply

* Operating case temperature: 0 to +70°C/-40~85°C

Applications

* Gigabit Ethernet

* Fiber Channel

* Switch to Switch interface

* Switched backplane applications

* Router/Server interface

* Other optical transmission systems

 Description

  The BIDI SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 80km transmission distance with SMF.

 The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
