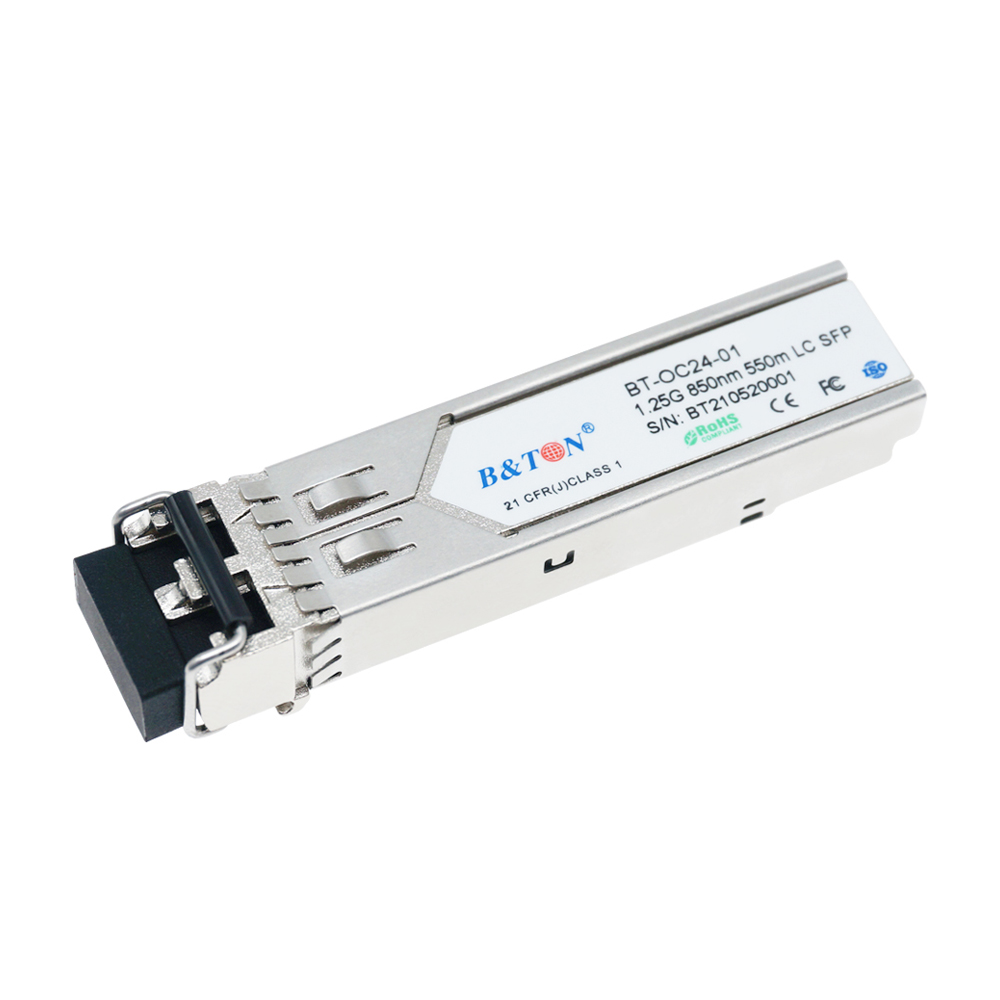

1.25Gbps 850nm 550m SFP Transceiver
Features
- Data-rate of 1.25Gbps operation
- 850nm VCSELlaser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
- 500mtransmissionwith 50/125µm MMF
- 300m transmissionwith 62.5/125µm MMF
- Compatible withRoHS
- +3.3V single power supply
- Operating case temperature:
Standard : 0 to +70°C
Extended : -40 to +85°C
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
